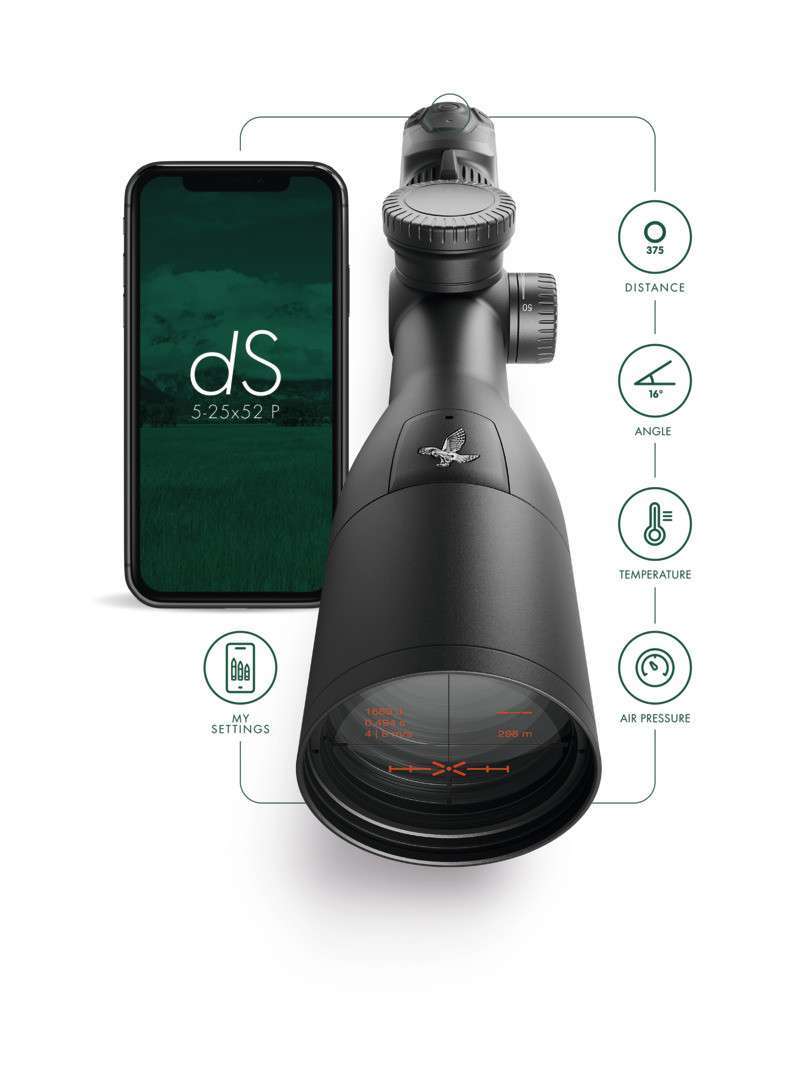

Swarovski Optics <br> DS 5-25X52 Gen. II

The dS automatically displays the correct aiming point and all the data you need in high resolution and in real time. Hunters no longer need to adjust the rifle scope manually, making it much easier to tackle long-range shots. The aiming point is calculated based on precise distance measurement, the angle of fire, the magnification selected, air pressure, temperature, and the ballistic data for your personal firearm/ammunition combination.

The dS Configurator App is used to enter the data on your firearm/ammunition combination and to configure the display. The ballistic curve and your individual display configurations are then transferred directly to the dS quickly and easily via Bluetooth.

MOUNT-TYPE

ring-mount

rail-mount

RETICLE

4A-I

OBJECTIVE

5-25Magnification

48-52 mmEffective objective lens diameter

9.6-2.1 mmExit pupil diameter

95 mmExit pupil distance

7.3-1.5 m/100mField of view

4.2-0.84 °Field of view degrees

21.5 °Field of view apparent

-3 to +2 dptDiopter adjustment

83 %Light transmission

14.1-36.0Twilight factor acc. to ISO 14132-1

50-∞ mParallax correction

MEASUREMENT

0.25 / 7Impact point correction per click

43/25 / 1.2/0.7Max. elevation / windage adjustment range

30-1375 mMeasuring range

1 mMeasuring precision

60 °Measuring angle

1024 mMax aiming point correction

DIGITAL

M 63x0.75Objective filter thread

500xOperating time

LCoS monochromeDisplay

dS ConfiguratorAdd-on program

iOS from Version 8.1, Android from Version 4.4 KitKatOperating system

SIZE & WEIGHT

403 mmLength in mm.

1090 g1115 gWeight

40 mmCentral tube diameter

ENVIRONMENT & CONDITIONS

-10 to +55 °CFunctional temperature

-30 to +70 °CStorage temperature

13 ft / 4 m water depth (inert gas filling)Submersion tightness

ILLUMINATION

64Brightness levels
